Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5
zoom_out_map
Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5
Gigabyte Placa Base B850M D3HP mATX AM5

Gigabyte Placa Base B850M D3HP mATX AM5

Gigabyte
IPBPA50076
Nuevo
5 Artículos
120,42 €
Impuestos excluidos
Cantidad


Marca Gigabyte
Modelo B850M D3HP
Plataforma - Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset - AMD B850
CPU Soportados - AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors
  AMD Ryzen™ 8000 Series Processors
  AMD Ryzen™ 7000 Series Processors
Memoria - Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) /
  7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /
  6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Slots Expansión - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- Chipset:
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Gráficos - Integrated Graphics Processor with AMD Radeon™ Graphics support:
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
Puertos E/S,
Conectores
 Conectores Internos
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 1 x system fan header
- 1 x system fan/water cooling pump header
- 2 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x reset jumper
- 1 x Clear CMOS jumper

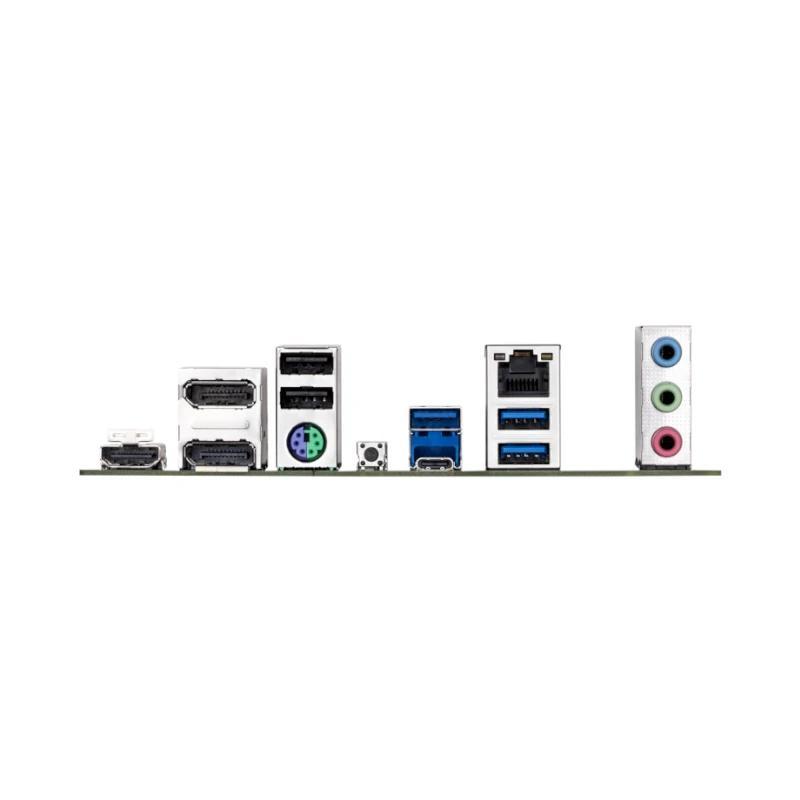

Panel Trasero
- 1 x HDMI port (Note)
- 2 x DisplayPorts (Note)
- 1 x PS/2 keyboard/mouse port
- 1 x Q-Flash Plus button
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 3 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
Otras
Características
Almacenamiento
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU:
  1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 port on the back panel
  1 x USB 2.0/1.1 port on the back panel
- Chipset:
  1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Fecha Revisión 13-06-2025 por DR

Referencias específicas

ean13
4719331867058
